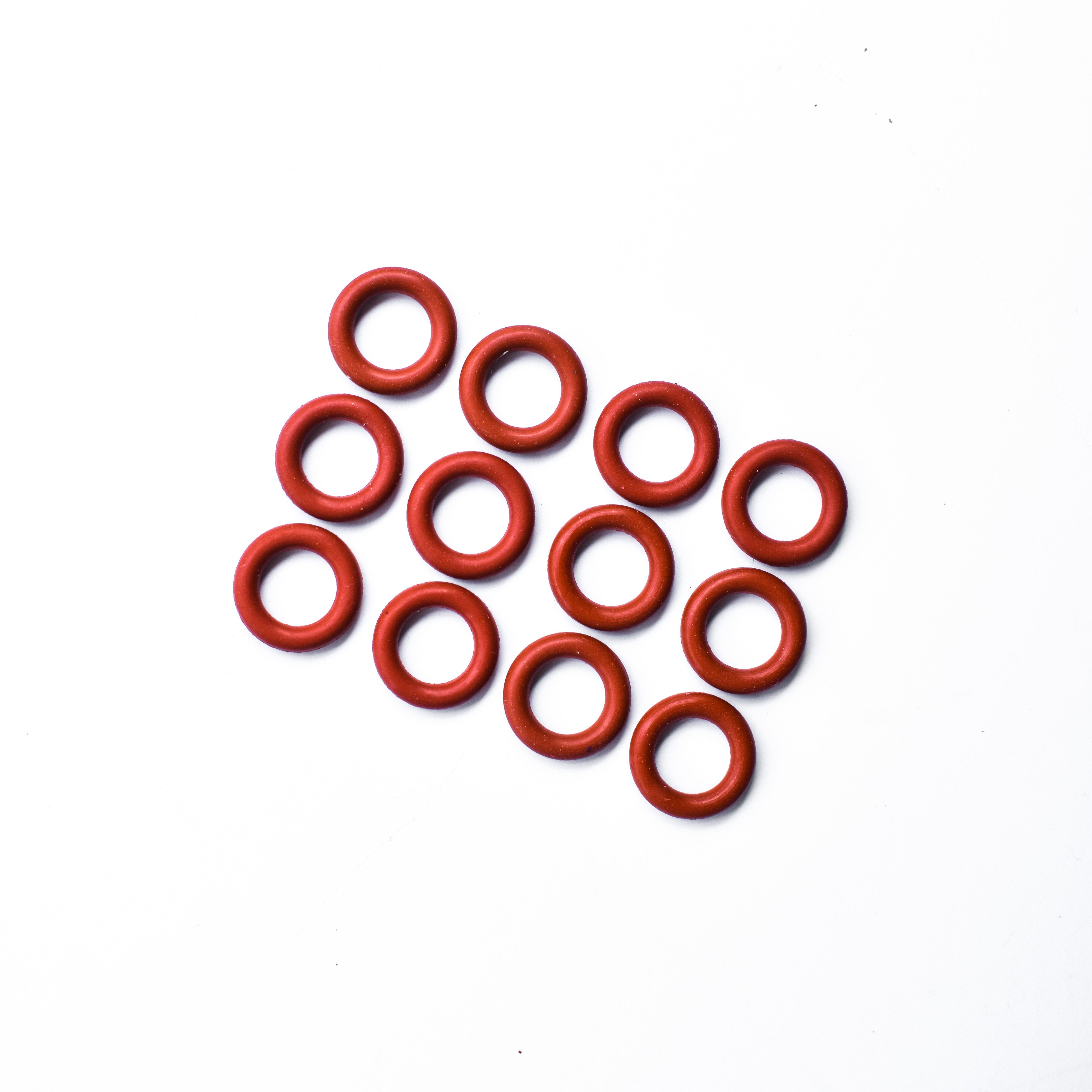

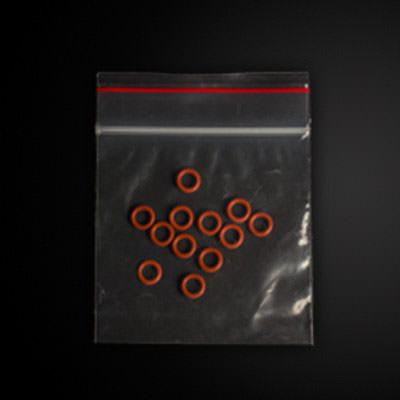

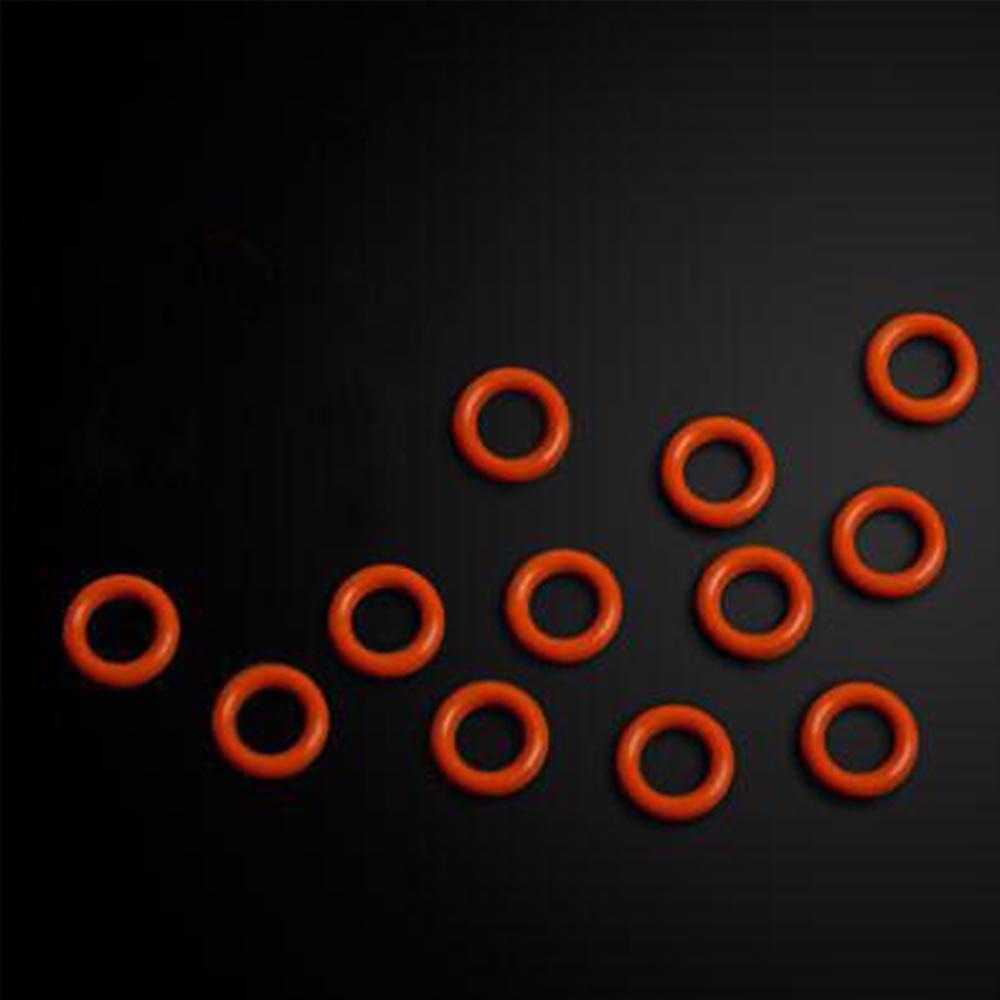

SLASH® O-ring Kit

BLADE ALIGNMENT

For the best arrow flight and accuracy, the blades of the broadhead should be aligned with the vanes on the arrow (see Figure 1). For the INsetBlade® Deployable Blades (the blades within the arrow shaft) to function and deploy properly, the INsetBlade® tabs must be offset from the blades of the broadhead in front of them. The broadhead blades MUST NOT align with, or be in front of, the INsetBlade® tabs behind them (see Figure 1).

The cock vane (single color vane) and the top broadhead blade should be UP (see Fig 2).

The INsetBlade® tabs should be at a 90° side angle to the top broadhead blade and cock vane. NOTE proper position of Retention O-ring.

SETUP INSTRUCTIONS

SLASH® INsetBlade® Arrows come pre-assembled but are available unassembled as well. For proper setup, follow these instructions.

For optimal performance, you must align the broadhead blades to the vanes and offset the INsetBlade® Deployable Blades from the broadhead blades. Likewise, the bowstring and nock must be aligned with the top cock vane, maintaining the 90° offset of the INsetBlade®tabs.

PROPER SETUP:

1. Using a broadhead wrench, screw the broadhead onto the arrow, noting where the position where the blades stop.
2. Tighten the broadhead until one of the blades is pointing up at a 90° angle (perpendicular) to the flat edge of the INsetBlade® tabs. The INsetBlade® tabs are small, triangular points extending outward from the shaft when in the closed position. Broadhead blades SHOULD NOT be in line with these INsetBlade® tabs.
3. When installing vanes, ensure the cock vane is in line with the bowstring when nocked and is also in line with the top broadhead blade to maintain the 90° angle offset of the INsetBlade® tabs. When nocked, the INsetBlade® tabs should be horizontal.

BROADHEAD ASSEMBLY

In the event you need to assemble the broadhead for your SLASH® INsetBlade® Arrow, follow these instructions.

WARNING! Broadhead blades are extremely sharp. Care should be taken to handle them as such. Mishandling will result in serious injury!

Hold the broadhead ferrule [A] in the up position.

Place the broadhead blades [B] pointing up and slide them into position under the trocar tip and carefully set them into the grooves of the ferrule.

Slide the retaining ring [C] up the bottom of the ferrule and lock the blades [B] in place. The ring should completely cover the bottom tabs of the blades.

Slide the washer [D] up the bottom of the ferrule next to the retaining ring.

IMPORTANT NOTE: Be certain broadhead properly aligns with INsetBlade® Deployable Blades and vanes when screwed into arrow shaft.

KEEP BLADES OUT FRONT

SLASH® INsetBlade® Arrows are available in multiple sizes. It is extremely important to understand how a SLASH® INsetBlade® Arrow should be sized for proper and safe nocking/drawing (see Figure 5).

The INsetBlade® Deployable Blades (the blades within the arrow shaft must be securely fastened with Retention O-ring; see Figure 2) are similar to an expanding mechanical broadhead and must,at all times during the drawing and nocking process of the arrow, be in front of both the hand holding the bow and the arrow rest. DO NOT DRAW INSETBLADE® DEPLOYABLE BLADES THROUGH THE ARROW REST UNDER ANY CIRCUMSTANCES.

RECOMMENDED ARROW SIZING

Arrow should be cut such that the INsetBlade® Deployable Blades and broadhead are all in front of the hand holding the bow handle at full draw. The tabs of the INsetBlade® Deployable Blades should always be in front of the arrow rest.*

The following are for sizing arrows. Actual cutting of arrow and proper size will be different for each archer and vary based on bow design, model and arrow rest (see Figure 5).

Do not size arrows too short at full draw.*

Bows with set back rests which are set back more than 2", may cut arrows 2" longer than draw length.

INSTALLING RETENTION O-RING AND INSETBLADE® DEPLOYABLE BLADES

Install the Retention O-ring to secure INsetBlade® Deployable Blades. The INsetBlade® Deployable Blades must be fully closed, the broadhead removed from the arrow, and the Retention O-ring installed properly prior to use (see Figure 6).

1. Lock INsetBlade® Deployable Blades in place by closing the blades into the shaft.
2. 2. Push the INsetBlade® tabs back slightly and down to lock the tips of the blades in position, completely flush with the arrow shaft.
3. 3. Slide Retention O-ring over the shaft all the way back until it lies flat against the tabs as shown above, making certain it is not damaged or cut during installation (see Figure 6).

WARNING! PRIOR TO EACH USE, check the Retention O-ring for visible damage such as cracking, deformation, discoloration or any other condition that may affect its performance. If any of these conditions are present, DO NOT use. Failure to follow these instructions may result in serious injury and/or property damage.
